SRT4 Dyno Results...

sfla_srt4 · Post by **sfla_srt4** » Tue Oct 21, 2008 1:30 pm

Here are my results..

Base- 225Hp and 263Tq
After- 263Hp and 311Tq
about a 30/50 gain for me..

Mods:
Needwings Dp, closed for the dyno.
Thats It! stock WG, surge, ETC...

Post by **sohfast94** » Tue Oct 21, 2008 1:57 pm

You just couldn't resist huh? LOL.

sfla_srt4 · Post by **sfla_srt4** » Tue Oct 21, 2008 2:09 pm

Couldnt do it lol... You want me to take it down??

Post by **sohfast94** » Tue Oct 21, 2008 2:11 pm

Nahh not at all!!! I'm gald you like it so much.

sfla_srt4 · Post by **sfla_srt4** » Tue Oct 21, 2008 2:22 pm

sent you a PM Brian..

chrisgst99 · Post by **chrisgst99** » Wed Oct 29, 2008 10:48 pm

i cant wait for mine to come in

Philth · Post by **Philth** » Thu Nov 13, 2008 1:24 am

Im about to order mine this Friday. I have Stage 3 with toys and basic bolt ons such as intake, FMIC, 3" exhaust and exhaust manifold port work. What will this canned tune do for me? I dynod at 405 WHP with HOM on and 360 off HOM.

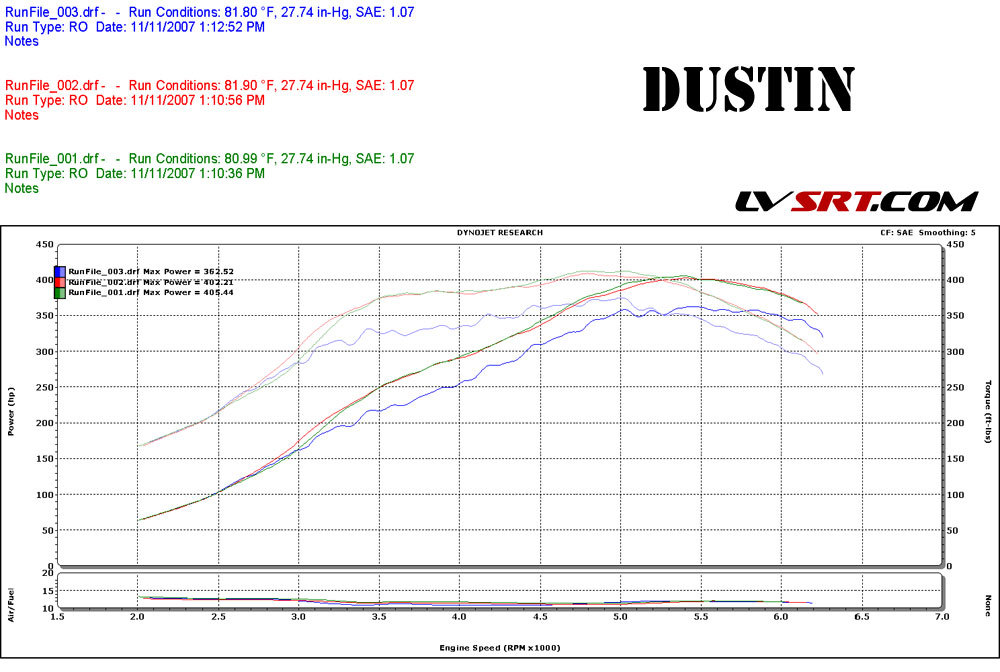

(Dyno sheet attached)

Post by **sohfast94** » Thu Nov 13, 2008 9:28 am

Should work well for you.. I got 20whp out of the stage 3.. Just make sure you monitor AFR...

BlackSin · Post by **BlackSin** » Thu Nov 13, 2008 2:26 pm

Are there any dyno graphs of S2? I have S2 w/ toys, CAI, FM wga, and 3 inch catless DP connected to MOPAR catback exhaust, all on PCM controlled boost and stock turbo. Just want to get an idea where I would stand with the base Diablo tune.

Philth · Post by **Philth** » Thu Nov 13, 2008 3:53 pm

sohfast94 wrote:Should work well for you.. I got 20whp out of the stage 3.. Just make sure you monitor AFR...

Will do. I'm running a 255 Walbro pump because my original S3 pump failed. If I understand the Predator correctly, it will recognize the S3 PCM and upload your guys' canned S3 tune?

I've also heard about some problems with the 2005s, and mine is as well. Is this true?

Post by **sohfast94** » Thu Nov 13, 2008 5:37 pm

There was a couple that had overboost issues with stock pcms that have since been fixed... There was couple that had part throttle boost spike... also fixed.. just make sure you're on the latest revision...
None of these issues had anything to do with the Stage pcms just the stockers.

Post by **sohfast94** » Thu Nov 13, 2008 5:41 pm

BlackSin wrote:Are there any dyno graphs of S2? I have S2 w/ toys, CAI, FM wga, and 3 inch catless DP connected to MOPAR catback exhaust, all on PCM controlled boost and stock turbo. Just want to get an idea where I would stand with the base Diablo tune.

I had one similar that was a stage 2 but it had a 50 trim on it so it's hard to compare... Should make 30whp and 35ft/lbs stock.. Obviously the 50 trim one I did made much more tuned vs. untuned.

BlackSin · Post by **BlackSin** » Thu Nov 13, 2008 6:02 pm

sohfast94 wrote: I had one similar that was a stage 2 but it had a 50 trim on it so it's hard to compare... Should make 30whp and 35ft/lbs stock.. Obviously the 50 trim one I did made much more tuned vs. untuned.

Thanks for the info.. one more question... for us with the toys, does the base tune modify any of the Dial-A-Boost features? I know the Toys still work (which is why i'm very interested in the Diablo instead of the "others"), but does the base tune adjust the torque limit in DAB 3 while reducing it in DAB 0? Just asking because I would rather have the base tune instead of messing with the parameters myself.

Post by **sohfast94** » Thu Nov 13, 2008 6:06 pm

I can set it however you want... But the way it comes is the toys work still the same just the 1-3 settings are actually higher than they used to be...

JuanchoSRT · Post by **JuanchoSRT** » Mon Nov 17, 2008 12:12 am

Hey guys I have a problem since I instaled the tune the car is very lean!!

had to add 20% and I am still at 12.2

Stage2 injectors and 3.0 map and tip sensors. stock ecu! I never ran so lean!
